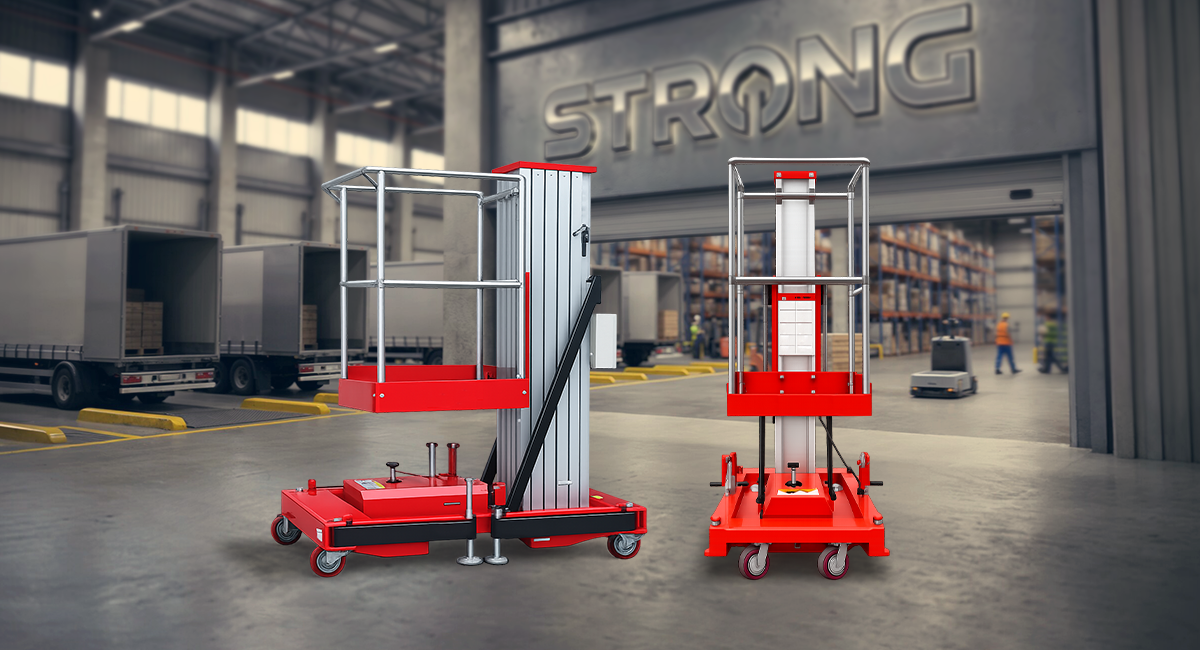

Double Mast Aerial Work Platform
SM-152

Double Mast Aerial Work Platform
SM-152

Key Features

  • Twin Aluminum Mast Design for superior stability
  • Higher Working Height than single-mast units
  • Strong Platform Load Capacity
  • Electro-Hydraulic Lifting Mechanism
  • Platform & Base Control Panels for easy operation
  • Safety Guard Rails with anti-fall protection
  • Non-Marking Wheels for indoor use
  • Emergency Lowering Valve
  • Overload Protection
  • Smooth, Silent Operation
  • Compact & Lightweight for Indoor Mobility

Detailed Description

The Double Mast Aerial Work Platform is a high-stability, medium-to-high-reach lift designed for safe and efficient overhead maintenance operations. With its dual-column mast structure, the machine offers superior rigidity, enhanced load capacity, and smoother vertical motion compared to single-mast platforms—making it ideal for professional indoor maintenance and industrial applications.

A robust and steady aerial lift featuring twin aluminum alloy masts that provide exceptional balance and lifting stability for working at higher elevations. Designed for precision, safety, and smooth movement in demanding indoor environments.

The Double Mast Aerial Work Platform is engineered with dual heavy-duty aluminum masts, providing balanced lifting and high structural integrity. This dual-support design increases platform stability, reduces sway, and allows for a higher working height with improved load capacity.

It comes equipped with a reliable electro-hydraulic lifting system, enabling smooth and quiet lifting operations. The machine’s compact base and lightweight frame allow easy movement through tight areas, standard doors, and elevators, making it suitable for multi-floor indoor work.

Safety guard rails, non-marking wheels, emergency descent systems, and overload protection ensure safe performance in all working conditions. The platform is specially built for professional maintenance tasks requiring height access with maximum safety and efficiency.

Technical Parameter

Double Mast Aerial Work Platform
LIFT CAPACITY 200KG 200KG 200KG 200KG 200KG 150KG
PLATFORM OCCUPANCY MAX 1 1 1 1 1 1
WORKING HEIGHT MAX 8.00M 10.00M 11.00M 12.00M 14.00M 16.00M
PLATFORM HEIGHT MAX 6.00M 8.00M 9.00M 10.00M 12.00M 14.00M
STOWED LENGTH 1.54M 1.54M 1.54M 1.76M 1.76M 1.90M
STOWED WIDTH 1.00M 1.00M 1.00M 1.00M 1.00M 1.16M
STOWED HEIGHT 2.00M 2.00M 2.00M 2.00M 2.00M 2.31M
PLATFORM SIZE 1.30 × 0.62M 1.30 × 0.62M 1.30 × 0.62M 1.52 × 0.62M 1.52 × 0.62M 1.52 × 0.62M
OUTRIGGER FOOTPRINT 1.77 × 1.82M 1.77 × 1.82M 1.77 × 1.82M 2.1 × 2.00M 2.1 × 2.00M 2.36 × 2.33M
GROUND CLEARANCE 0.05M 0.05M 0.05M 0.05M 0.05M 0.05M
LIFTING MOTOR (AC) 1.1KW 1.1KW 1.1KW 1.1KW 1.1KW 1.1KW
WEIGHT (AC) 600KG 660KG 730KG 780KG 830KG 900KG
OPTIONAL CONFIGURATIONS POWER SOURCE 24V / 100AH 24V / 100AH 24V / 100AH 24V / 100AH 24V / 100AH 24V / 100AH
LIFTING MOTOR (DC) 0.80KW 0.80KW 0.80KW 0.80KW 1.5KW 1.5KW
CHARGER 24V / 15A 24V / 15A 24V / 15A 24V / 15A 24V / 15A 24V / 15A
Need Heavy-Duty Pallet Trucks, Cranes or Stacker Solutions?
Get a Custom Quote from Experts Today.
Get a Custom Solution

Advantages

  • Extra Stable Platform due to dual mast support
  • Ideal for Higher Heights with reduced platform sway
  • Greater Lifting Capacity
  • Enhanced Safety with multiple protection systems
  • Easy Mobility in Indoor Spaces
  • Low Maintenance & Long Service Life
  • Operable by a Single Technician

Application

icon

Corporate & Commercial Building Maintenance

icon

Airports, Malls, Hotels & Hospitals

icon

Electrical Installations & Lighting Work

icon

Hvac Servicing

icon

Painting, Cleaning & Ceiling Maintenance

icon

Showroom & Warehouse Maintenance

icon

Industrial Overhead Service Tasks
