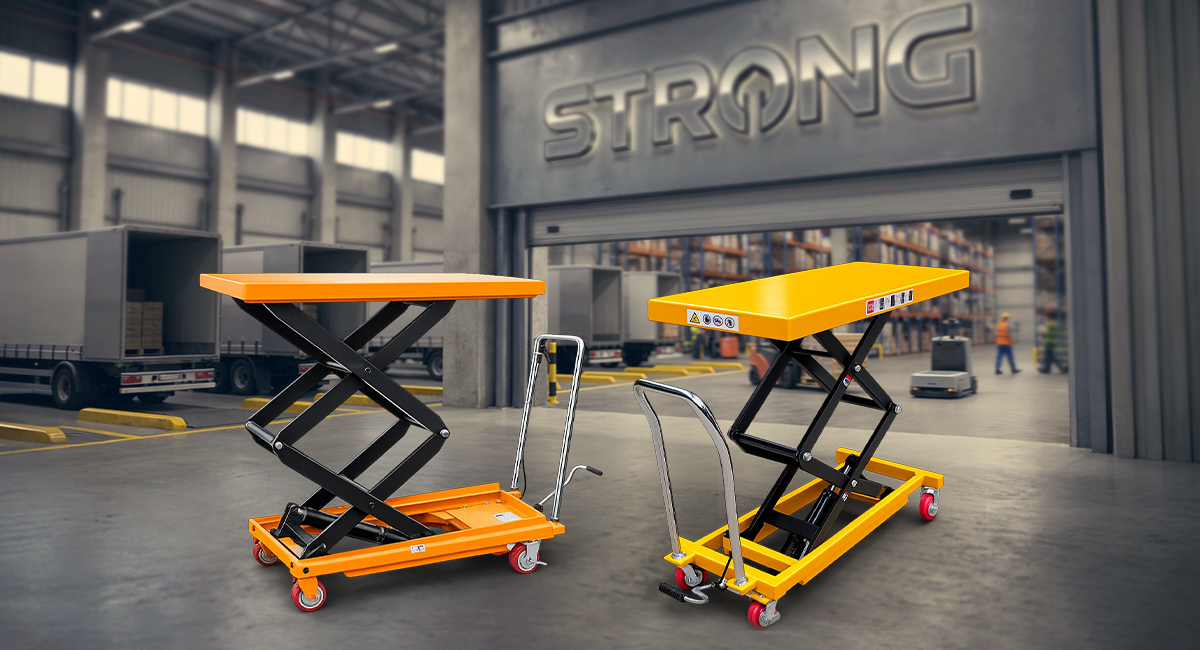

Hydraulic Scissor Lift Table
SM-146
Hydraulic Scissor Lift Table / Die Loader & Roller Scissor Lift Table
SM-146
Key Features
- Heavy-duty scissor mechanism and hydraulic/electric lifting system.
- High load capacity with stable construction.
- Safety features including anti-slip platforms, overload protection, and locking mechanisms.
- Smooth operation for precise lifting and positioning.
- Optional mobility with wheels or casters for easy repositioning.
- Integrated rollers (for Roller Scissor Lift Table) to facilitate horizontal movement of materials.
Detailed Description
Our range of lift solutions – including Hydraulic Scissor Lift Tables, Roller Scissor Lift Tables, and Die Loaders – is designed for efficient, safe, and heavy-duty material handling in industrial environments. These versatile machines enhance productivity by simplifying lifting, loading, unloading, and precise positioning of heavy items.
- Hydraulic Scissor Lift Table: Offers smooth vertical lifting with a heavy-duty scissor mechanism and hydraulic system, suitable for loading, unloading, and assembly tasks.
- Die Loader: Specially designed for safe handling of heavy dies, enabling precise lifting, positioning, and transfer in stamping, melding, or press operations.
- Roller Scissor Lift Table: Combines vertical lifting with integrated rollers for effortless material transfer across workstations, improving workflow efficiency.
Technical Parameter
| Hydraulic Scissor Lift Table | |||||
|---|---|---|---|---|---|
| Model | Capacity | Close Height | Maximum Height | Table Dimension | Colour |
| SB-22-500A | 500 KGS | 280 MM | 900 MM | 815 × 500 × 50 MM | RAL 1003 YELLOW + BLACK |
| SB-22-1000A | 1000 KGS | 415 MM | 1000 MM | 1016 × 500 × 55 MM | RAL 1003 YELLOW + BLACK |
| SB-22-S350A | 350 KGS | 350 MM | 1500 MM | 905 × 500 × 50 MM | RAL 1003 YELLOW + BLACK |
| SB-22-S500 | 500 KGS | 360 MM | 1500 MM | 905 × 500 × 50 MM | RAL 1003 YELLOW + BLACK |
| SB-22-S800 | 800 KGS | 450 MM | 1500 MM | 1200 × 600 × 60 MM | RAL 1003 YELLOW + BLACK |
| SB-22-S1000 | 1000 KGS | 500 MM | 1700 MM | 1200 × 600 × 80 MM | RAL 1003 YELLOW + BLACK |
| OPERATING SYSTEM | MANUAL / BATTERY / ELECTRIC | ||||
| FEATURES | ADDITIONAL DIA / ROLLER PLATFORM ON TOP | ||||
| CUSTOMIZATION AVAILABLE AS PER YOUR REQUIREMENT | |||||
Need Heavy-Duty Pallet Trucks, Cranes or Stacker Solutions?
Get a Custom Quote from Experts Today.
Advantages
- Reduces manual labour and risk of workplace injuries.
- Enhances operational efficiency and precision.
- Safe and reliable performance for heavy-duty industrial applications.
- Versatile solution for multiple material handling tasks in one equipment range.
Application
Production Units
Loading & Unloading Operations
Assembly Lines, Die Handling
