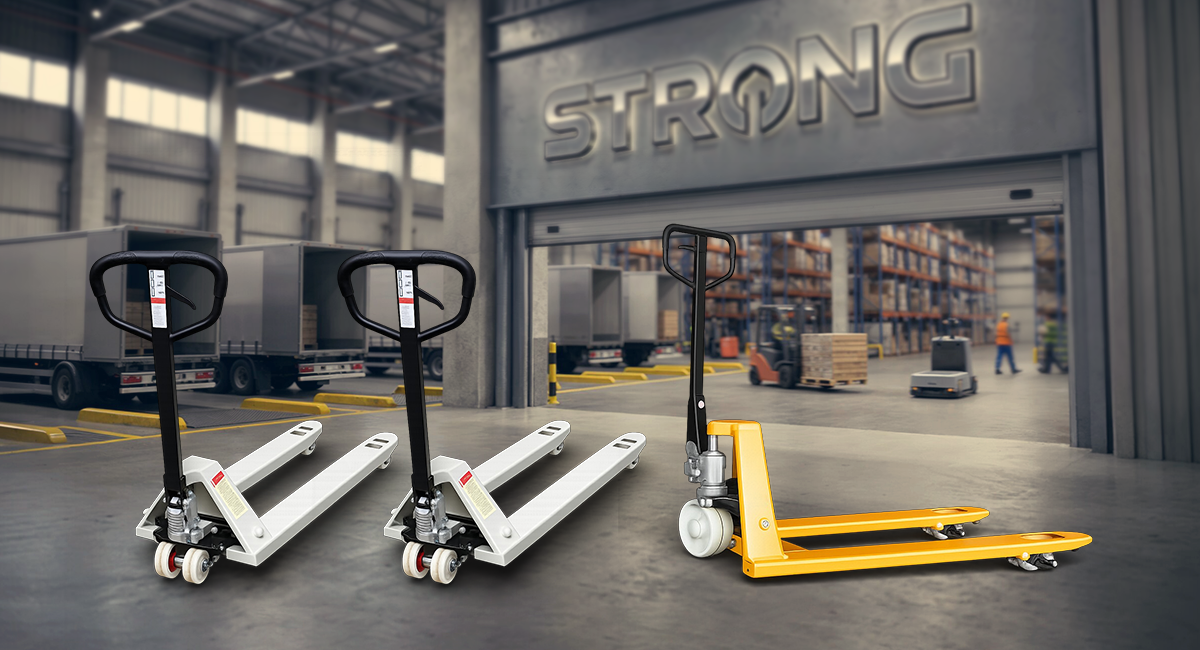

Hand Pallet Truck
SM-101
Hydraulic Hand Pallet Truck
SM-101
Key Features
- High Load Capacity: 2 ton to 3 ton models available.
- Heavy-Duty Steel Structure: Durable frame with reinforced forks.
- Leak-Proof Hydraulic Pump: Ensures smooth lifting and long operational life.
- Ergonomic 3-Function Handle: Easy lifting, lowering & neutral control.
- Low Maintenance Design: Fewer moving parts with high reliability.
- Smooth Movement: PU/Nylon tandem wheels for reduced friction and noise.
- Powder-Coated Finish: Rust resistance and long-term durability.
- Custom Options: Different fork lengths & widths available on request.
Detailed Description
A reliable and easy-to-use material handling solution designed for smooth movement of palletized loads. Built with a strong steel chassis and high-precision hydraulic pump, it ensures efficient lifting, transporting, and maneuvering in warehouses, factories, and logistic centers.
A hydraulic hand pallet truck (also called a “manual pallet jack” or “pallet truck”) is a simple, manually-operated device designed to lift and transport palletized loads over short to medium distances — typically inside warehouses, factories, retail stores, or distribution centres. It consists of a sturdy steel frame, a pair of forks (prongs) that slide underneath a pallet, a hydraulic pump mechanism (activated by a handle), and wheels to roll the load. Because it is manually operated and does not require electricity or fuel, it is cost-effective, low-maintenance, and suitable for many environments — especially where heavy motorized forklifts aren’t practical or necessary.
Technical Parameter
| SB-01 Hand Pallet Truck | ||||||
|---|---|---|---|---|---|---|
| Fork Length (mm) | 800 | 1150 | 1220 | 1500 | 1800 | 2000 |
| Overall Width (mm) | 550 | 550 | 685 | 550/685 | 550/685 | 550/685 |
| Max. Load Capacity (kg) | 2500 / 3000 | 2500 / 3000 | 2500 / 3000 | 2500 / 3000 | 2500 / 3000 | 2500 / 3000 |
| Max. Lifting Height (mm) | 200 | 200 | 200 | 200 | 200 | 200 |
| Min. Height of Fork (mm) | 90 | 90 | 90 | 90 | 90 | 90 |
| Overall Length (mm) | 1210 | 1560 | 1630 | 1910 | 2210 | 2410 |
| Wheel Type | Nylon/PU | Nylon/PU | Nylon/PU | Nylon/PU | Nylon/PU | Nylon/PU |
| Drive Wheel Size (mm) | 180 × 50 | 180 × 50 | 180 × 50 | 180 × 50 | 180 × 50 | 180 × 50 |
| Load Wheel Size (mm) | 80 × 70 | 80 × 70 | 80 × 70 | 80 × 70 | 80 × 70 | 80 × 70 |
| Structure | MS Sheet | MS Sheet | MS Sheet | MS Sheet | MS Sheet | MS Sheet |
| Net Weight (kg) | ||||||
| Customization available as per your requirement | ||||||
Need Heavy-Duty Pallet Trucks, Cranes or Stacker Solutions?
Get a Custom Quote from Experts Today.
Advantages
- Cost-Effective: No battery or electrical power required.
- Easy Handling: Light steering effort & smooth mobility under load.
- Versatile Use: Suitable for all standard pallets.
- Safe Operation: Controlled lifting/lowering for goods protection.
- Durable & Long-Life: Strong build & industrial-grade components.
- Low Operating Cost: Minimal maintenance throughout lifecycle.
