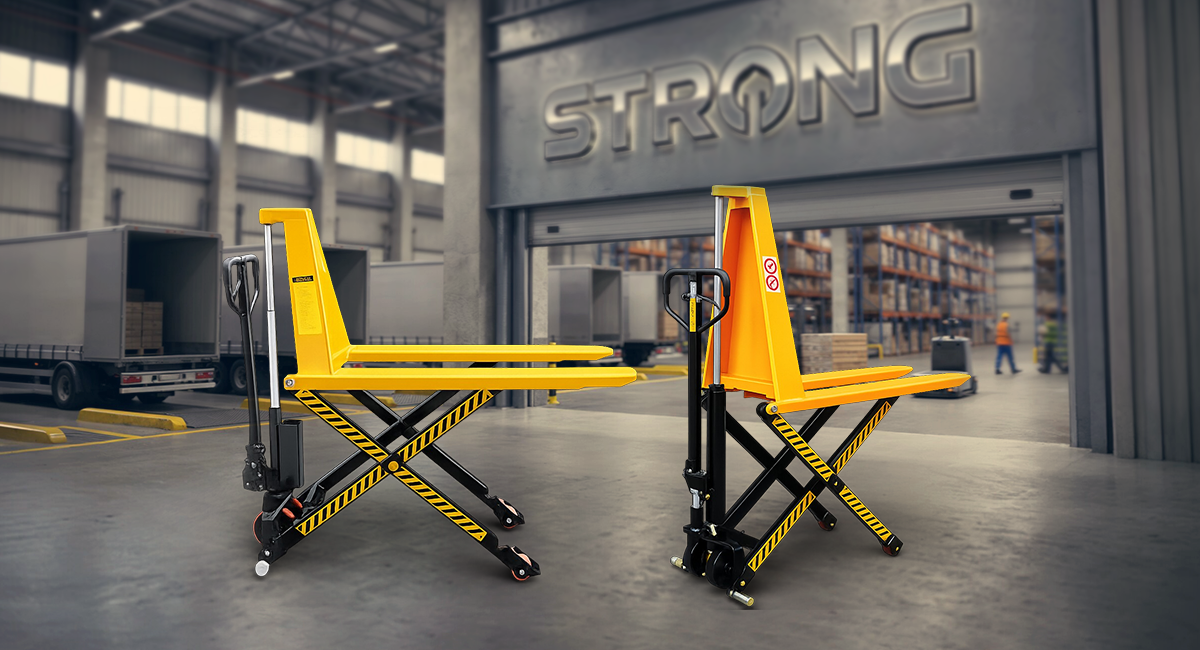

High Lift Pallet Truck
SM-105
High Lift Pallet Truck
SM-105
Key Features
- Lift height up to 800–1000 mm
- Scissor-lift design
- Stable elevated working platform
- Heavy-duty steel frame
- Safety locking mechanism
Advantages
- Reduces operator bending, improves ergonomics, dual-purpose.
Technical Parameter
| High Lift Pallet Truck SM-105 | |
|---|---|
| Fork Length (mm) | 1150 |
| Overall Width (mm) | 550 |
| Max. Load Capacity (Kg) | 1000 / 1500 |
| Max. Lifting Height (mm) | 800 / 1000 |
| Min. Height Of Fork (mm) | 90 |
| Overall Length (mm) | 1560 |
| Wheel Type | NYLON / PU |
| Drive Wheel Size (mm) | 180 × 50 |
| Load Wheel Size (mm) | 80 × 70 |
| Structure | MS SHEET |
| Cylinder | SINGLE |
| Net Weight (Kg) | — |
| Customization Available As Per Your Requirement | |
Detailed Description
A lifting pallet truck that raises pallets to an ergonomic working height.
The High Lift Pallet Truck functions both as a pallet jack and a work-positioner, allowing operators to lift pallets to waist height for easy loading/unloading. Ideal for workshops, assembly lines, packing stations and repetitive handling tasks. Its scissor-lift mechanism provides stable elevated support.
Need Heavy-Duty Pallet Trucks, Cranes or Stacker Solutions?
Get a Custom Quote from Experts Today.
Application
Packing Stations
Workbenches
Manufacturing Units
