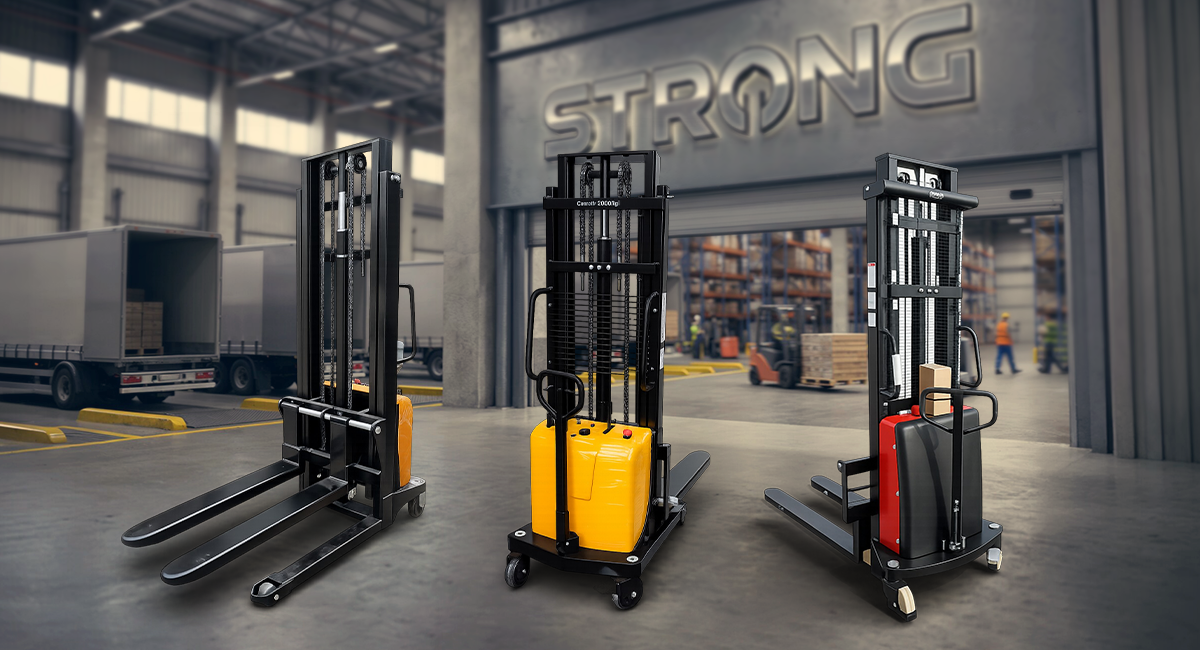

Semi Battery Stacker
SM-114

Key Features

Battery-operated electric lifting system
Manual push/pull movement (no motor drive)
Durable single/double mast options
Ergonomic handle for easy manoeuvring
Heavy-duty PU/Nylon wheels for smooth movement
Emergency stop switch & safety lock
Overload protection & controlled lowering
Long-lasting maintenance-free battery
Smart automatic charger included

Get Quote

Detailed Description (Model No.: SB-20)

The Semi Battery Stacker is equipped with a battery-powered hydraulic lifting system while the movement is manual, making it a cost-effective solution for medium-duty stacking and pallet-handling operations.

The Semi Battery Stacker features a robust steel body, reinforced mast, and high-efficiency hydraulic power pack operated by a battery-powered motor. Lifting and lowering are fully controlled through an electric push-button system, giving the operator smooth, effortless, and accurate lifting.

Travel and steering are performed manually, ensuring low running costs and reducing mechanical complexity. The equipment is built to operate efficiently in narrow aisles and tight warehouse spaces.

The stacker includes high-quality traction wheels, safety brakes, emergency stop, and overload protection, ensuring a safe and reliable working environment. Long-lasting industrial batteries with a smart charger provide uninterrupted performance throughout the work shift.

Technical Parameter

SB-20 Semi Battery Stacker
Max. Load Capacity (kg)	1000		1500		2000
Mast Type	Single	Double	Single	Double	Single	Double
Max. Lifting Height (mm)	1600	2500 / 3000 / 3500 / 4500	1600	2500 / 3000 / 3500 / 4500	1600	2500
Overall Height Mast Lowered (mm)	1970	1750 / 2000 / 2250 / 2750	1970	1750 / 2000 / 2250 / 2750	1970	1750
Overall Height Mast Extended (mm)	1970	3000 / 3500 / 4000 / 5000	1970	3000 / 3500 / 4000 / 5000	1970	3000
Min. Height of Fork (mm)	90		90		90
Load Center (mm)	550		550		550
Overall Length (mm)	1670		1690		1690
Overall Width (mm)	760		760		760
Fork Size (L × W × H) (mm)	1150 × 160 × 60		1150 × 160 × 60		1150 × 160 × 60
Forks Outside Width (mm)	350–680		350–680		350–680
Leg Length (mm)	1000		1000		1000
Wheel Type	Nylon / PU		Nylon / PU		Nylon / PU
Drive Wheel Size (mm)	180 × 50		180 × 50		180 × 50
Load Wheel Size (mm)	80 × 70		80 × 70		80 × 70
Battery Voltage / Rated Capacity (V/Ah)	12 / 120
Charger	12V / 15A
Lifting Motor (kW)	12V / 1.6 kW
Customization available as per your requirement

Need Heavy-Duty Pallet Trucks, Cranes or Stacker Solutions?

Get a Custom Quote from Experts Today.

Get a Custom Solution

Advantages

Effortless electric lifting, reduced fatigue
More economical than full-electric stackers
Low maintenance & easy to operate
Compact design ideal for narrow aisles
Smooth control for safe lifting and lowering
Energy-efficient with long battery backup
