Single Mast Aerial Work Platform
SM-151

Key Features

Strong Single Aluminum Mast for stable vertical lifting
Compact & Lightweight Design suitable for narrow aisles and tight spaces
Non-Marking Wheels for indoor flooring
Easy-to-Use Control Panel on platform and base
Safety Guard Rails with anti-fall protection
Emergency Lowering System for safe descent in case of power failure
High-Strength Work Platform suitable for tools and small equipment
Overload Protection System ensuring operational safety
Silent & Smooth Operation ideal for indoor use
Easy to Transport through standard doors and elevators

Get Quote

Detailed Description

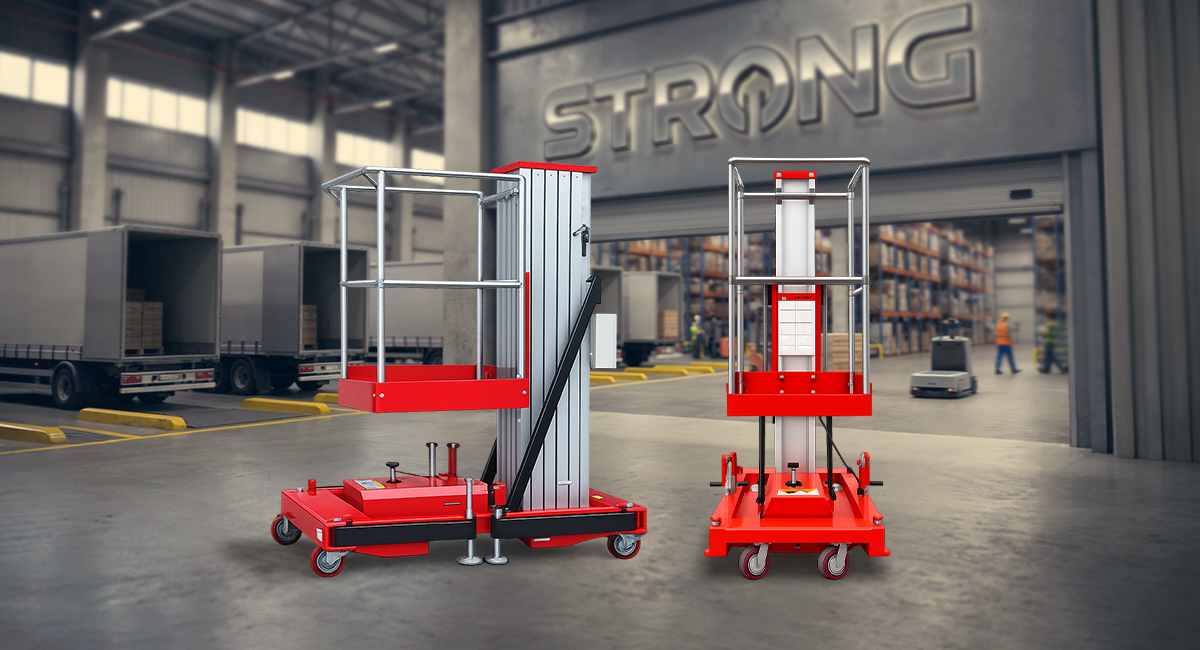

The Single Mast Aerial Work Platform is a compact, safe, and high-efficiency lifting solution designed for indoor maintenance, installation, and elevated work applications. Its lightweight construction, stable mast structure, and user-friendly controls make it ideal for facilities where quick, reliable vertical access is required.

A versatile and compact aerial lift designed to provide safe working heights for electrical work, cleaning, painting, signage, lighting installations, and routine facility maintenance. Built for durability, stability, and ease of use in tight spaces.

The Single Mast Aerial Work Platform features a rugged aluminum alloy mast, ensuring excellent stability while keeping the unit lightweight and easy to maneuver. The platform is equipped with non-marking wheels, making it suitable for malls, airports, warehouses, showrooms, factories, and corporate facilities.

The system operates on a hydraulic or electro-hydraulic lifting mechanism, driven by a reliable power pack. With smooth vertical movement, precision controls, and an anti-tilt chassis, users can work safely at heights with complete confidence.

Its compact base allows the platform to pass easily through standard doorways, making it extremely portable and convenient for multi-floor operations using service elevators.

Technical Parameter

Single Mast Aerial Work Platform
Lift Capacity		125KG	125KG	125KG	125KG
Platform Occupancy Max		1	1	1	1
Working Height Max		8.00M	10.00M	11.00M	12.00M
Platform Height Max		6.00M	8.00M	9.00M	10.00M
Stowed Length		1.34M	1.34M	1.45M	1.45M
Stowed Width		0.85M	0.85M	0.85M	0.85M
Stowed Height		2.00M	2.00M	2.00M	2.00M
Platform Size		0.60 × 0.55M	0.60 × 0.55M	0.60 × 0.55M	0.60 × 0.55M
Outrigger Footprint		1.70 × 1.67M	1.70 × 1.67M	1.93 × 1.77M	1.93 × 1.77M
Ground Clearance		0.05M	0.05M	0.05M	0.05M
Lifting Motor (Ac)		0.75KW	0.75KW	0.75KW	1.1KW
Weight (Ac)		370KG	390KG	400KG	420KG
Optional Configurations	Power Source	24V / 80AH	24V / 80AH	24V / 80AH	24V / 80AH
	Lifting Motor (DC)	0.80KW	0.80KW	0.80KW	0.80KW
	Charger	24V / 15A	24V / 15A	24V / 15A	24V / 15A

Need Heavy-Duty Pallet Trucks, Cranes or Stacker Solutions?

Get a Custom Quote from Experts Today.

Get a Custom Solution

Advantages

Improves Work Safety compared to ladders and scaffolding
Higher Productivity with fast up-down movement
Easy to Maneuver by a single operator
Low Maintenance Requirements
Space-Saving Design
Cost-Effective Access Solution
