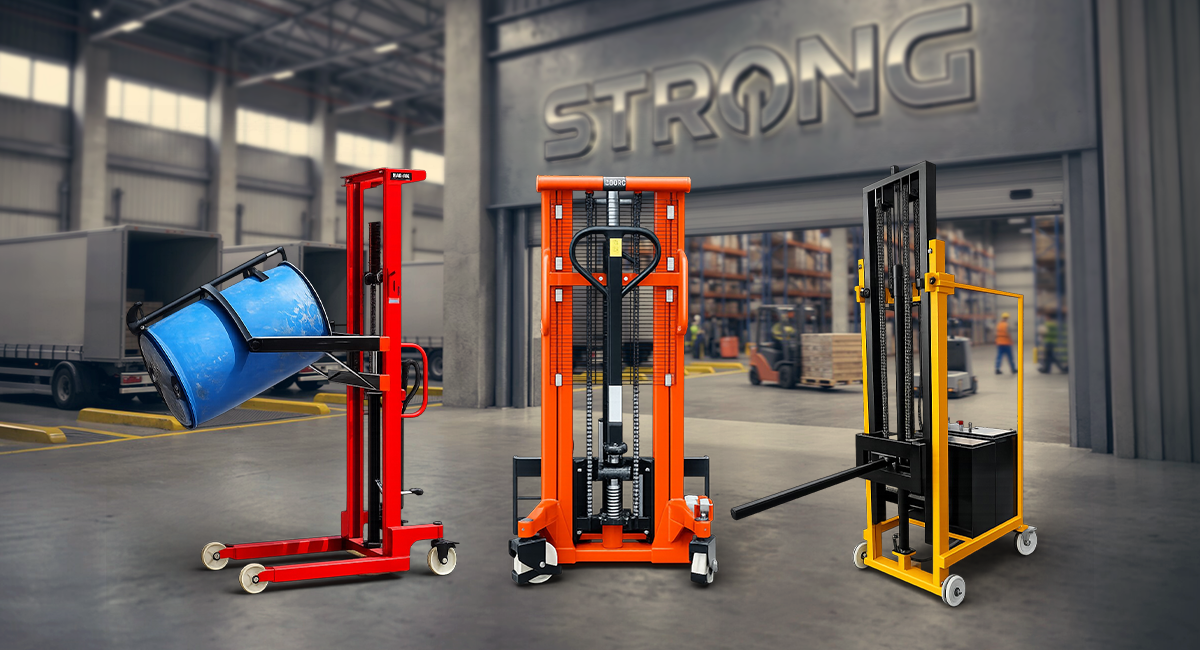

Manual Hand Stacker
SM-111
Manual Stacker
SM-111
Key Features
- Heavy-duty MS construction for long-lasting performance
- Manual hydraulic pump with smooth & safe lifting
- Compact design ideal for narrow warehouse aisles
- Ergonomic handle for easy pulling & manoeuvring
- Nylon/PU wheels for effortless movement
- Reliable C-channel mast for strong lifting support
- Safety wheel guard & overload protection
- Low maintenance, high durability
Detailed Description
The Manual Stacker is a robust, easy-to-operate lifting equipment used for handling pallets and goods up to a specific height. It offers smooth lifting, precise control, and safe operation for everyday material-handling tasks.
The stacker features a heavy-duty MS (mild steel) construction, ensuring exceptional durability and long service life. Lifting is achieved through a manual hydraulic system operated by foot pedal or hand lever, providing controlled lifting with minimal effort.
Its compact design allows it to operate in narrow aisles, making it highly suitable for small storage areas.
The equipment comes with adjustable or fixed forks, strong C-section masts, and high-grade PU/Nylon wheels for smooth movement. With a range of lifting heights, it is ideal for loading/unloading, stacking shelves, die handling, and pallet positioning.
Technical Parameter
| Manual Stacker | ||||||
|---|---|---|---|---|---|---|
| Max. Load Capacity (Kg) | 1000 | 1500 | 2000 | |||
| Mast Type | Single | Double | Single | Double | Single | Double |
| Max. Lifting Height (mm) | 1600 | 2500 / 3000 | 1600 | 2500 / 3000 | 1600 | 2500 / 3000 |
| Overall Height Mast Lowered (mm) | 1970 | 1750 / 2000 | 1970 | 1750 / 2000 | 1970 | 1750 / 2000 |
| Overall Height Mast Extended (mm) | 1970 | 3000 / 3500 | 1970 | 3000 / 3500 | 1970 | 3000 / 3500 |
| Min. Height of Fork (mm) | 90 | 90 | 90 | |||
| Load Center (mm) | 550 | 550 | 550 | |||
| Overall Length (mm) | 1670 | 1690 | 1690 | |||
| Overall Width (mm) | 760 | 760 | 760 | |||
| Fork Size (L × W × H) (mm) | 1150 × 160 × 60 | 1150 × 160 × 60 | 1150 × 160 × 60 | |||
| Forks Outside Width (mm) | 350–680 | 350–680 | 350–680 | |||
| Leg Length (mm) | 1000 | 1000 | 1000 | |||
| Wheel Type | Nylon / PU | Nylon / PU | Nylon / PU | |||
| Drive Wheel Size (mm) | 180 × 50 | 180 × 50 | 180 × 50 | |||
| Load Wheel Size (mm) | 80 × 70 | 80 × 70 | 80 × 70 | |||
| Customization Available As Per Your Requirement | ||||||
Need Heavy-Duty Pallet Trucks, Cranes or Stacker Solutions?
Get a Custom Quote from Experts Today.
Advantages
- Economical compared to electric/battery stackers
- Zero running cost – operates manually
- Safe & stable lifting mechanism
- Long operational life with minimal maintenance
- Highly maneuverable in tight spaces
- Suitable for all types of pallets & containers
Application
Die Lifting In Workshops
Material Positioning In Production Lines
Goods Movement In Stores
Factories & Logistics Centres
